PROTEX 50 Gazebo 8m x 4m

WHY CHOOSE THE PROTEX®50 INSTANT SHELTER?

• A great balance between quality, weight, and cost
• A fully professional gazebo with multiple applications
• Construction in solid aluminium
• Aluminium alloy joints and connectors
• All fabrics made of high-quality POLYESTER with an inner PVC coating
• Fully waterproof
• Flame retardant
• Custom printing and branding is available
• Withstand Wind Gusts of up to 75km per hour!

PROTEX®50 CONSTRUCTION: STRENGTH AND DURABILITY

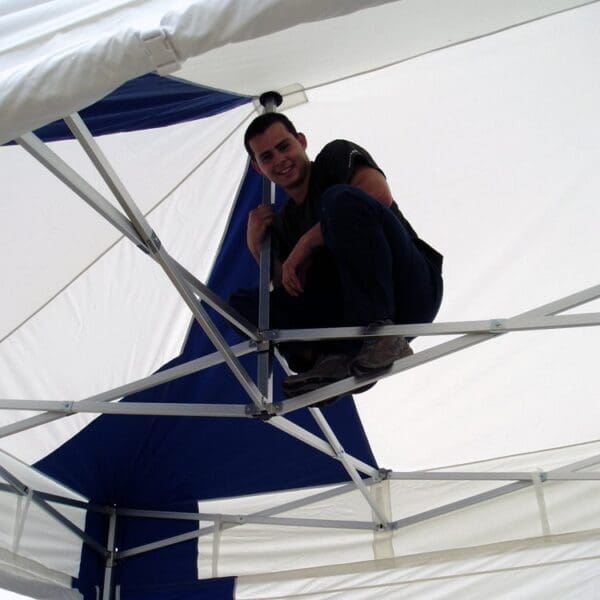

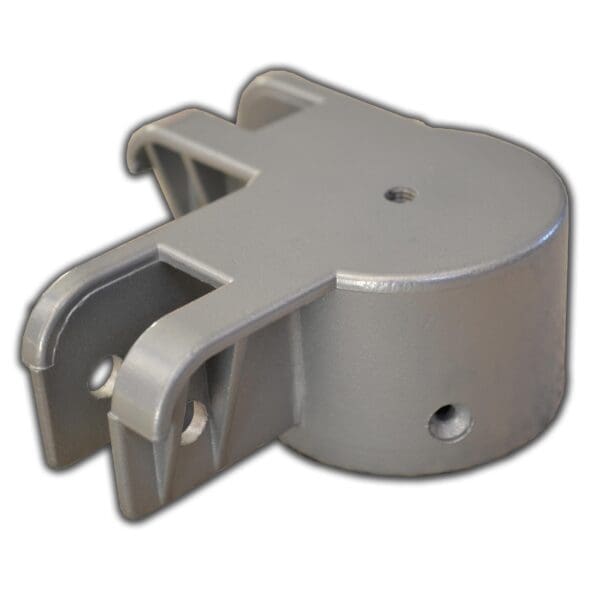

The scissor bars of the PROTEX®50 range are made of aluminium. Individual parts of the structure (telescopic legs, scissor profiles, and central vertical struts) are bolted together using aluminium alloy joints. These cast alloy joints/brackets are covered by a lifetime warranty, which we believe is truly unique in the industry. In the event of an unexpected accident, all parts of the structure are easily and quickly replaceable.

BUY WITH PEACE OF MIND

Our PROTEX®50 instant shelters come with a 12-month warranty. In addition to your 12-month warranty, you’ll receive a 5 year frame warranty and a lifetime warranty on all cast alloy joints and brackets. This, we believe, is unique in the industry and demonstrates our complete faith in the products we manufacture.

This product includes a free accessory package which includes heavy duty cover storage bags, strong steel pegs, and nylon guy ropes.

WE GUARANTEE:

• 12-month warranty
• 5 year frame warranty
• Lifetime warranty on cast alloy joints & brackets
• Unrivalled service, advice and support
• Availability of all spare parts

PROTEX®50 GAZEBO 8MX4M PACKAGE CONTENTS

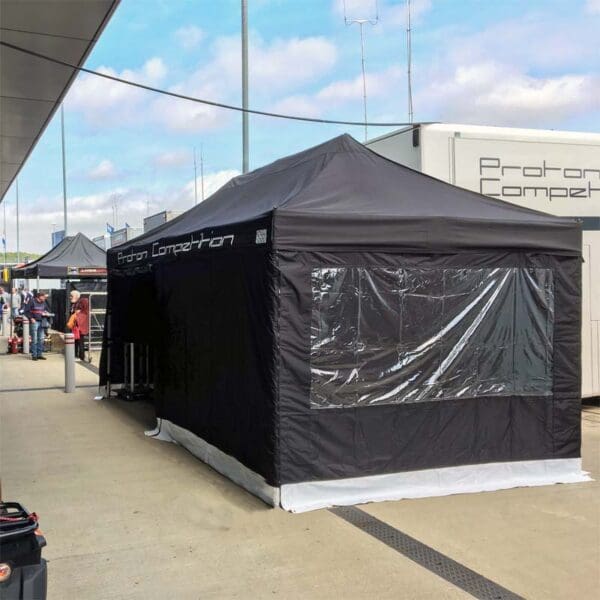

• 8m x 4m solid aluminium frame construction (PROTEX®50 GAZEBO variant)
• 8m x 4m PROTEX®50 canopy (material: POLYESTER with inner PVC coating)
• Optional according to variants “with/without” – Full PROTEX®50 GAZEBO set of 4 separate side panels (POLYESTER with inner PVC coating) – combination of 2 windows with internal blinds, 1 rolling extra wide door that can be fastened with high-quality zippers and 1 solid panel.
• Storage bag for sidewalls

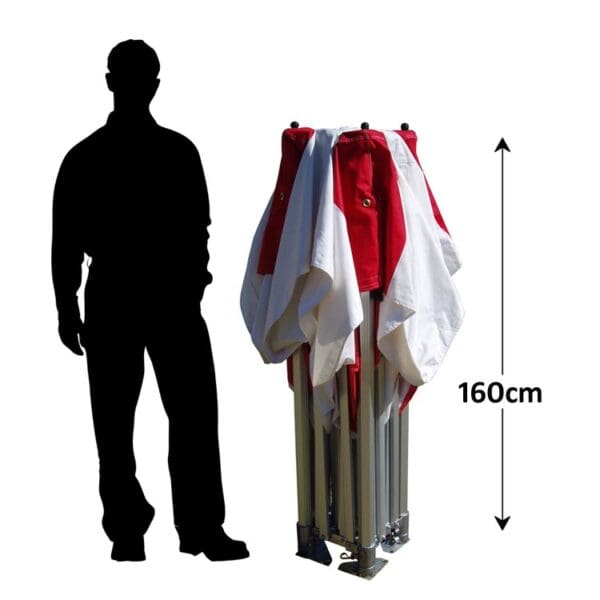

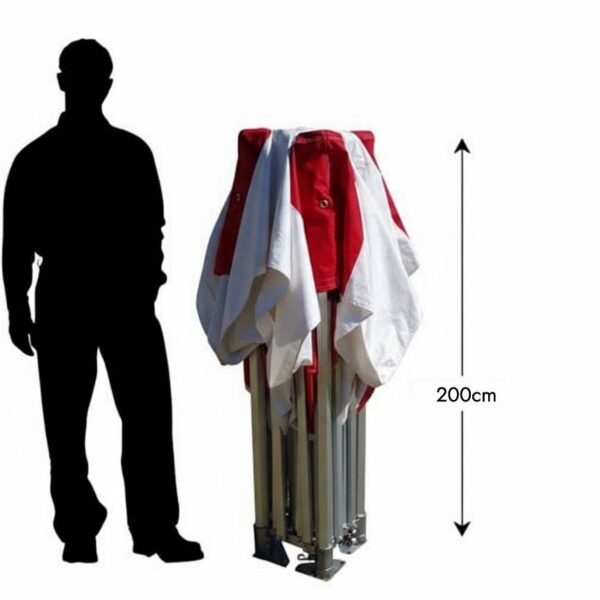

• Protective frame transport bag (the bag is large enough to hold the frame with the roof attached when folded)

DETAILED SPECIFICATIONS – PROTEX®50 GAZEBO 8MX4M

FRAMEWORK

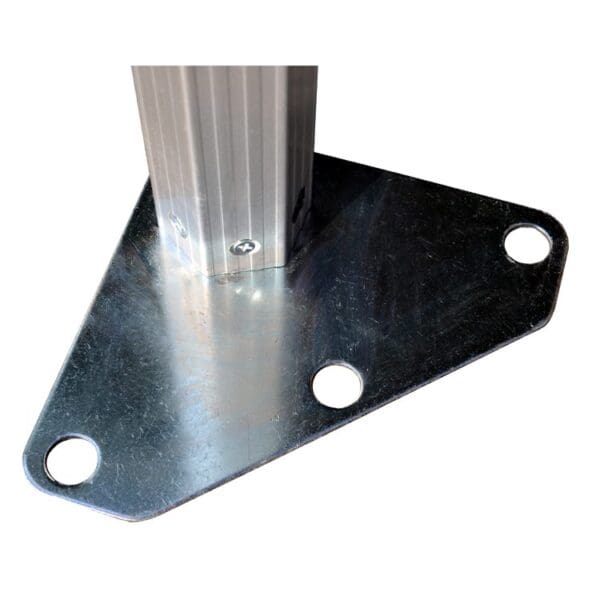

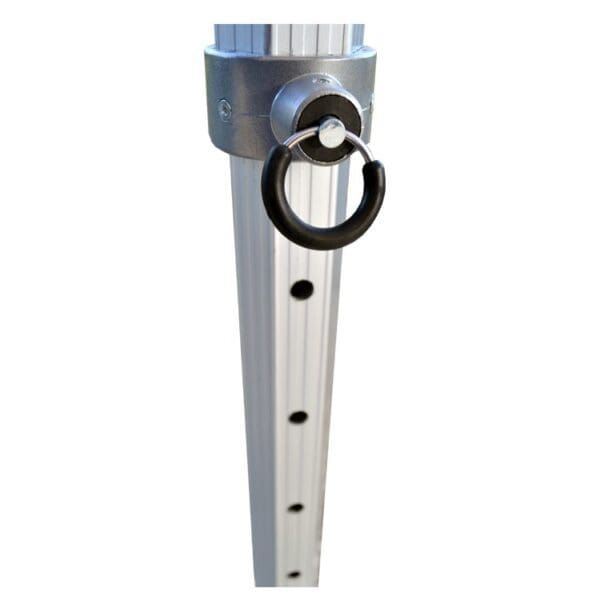

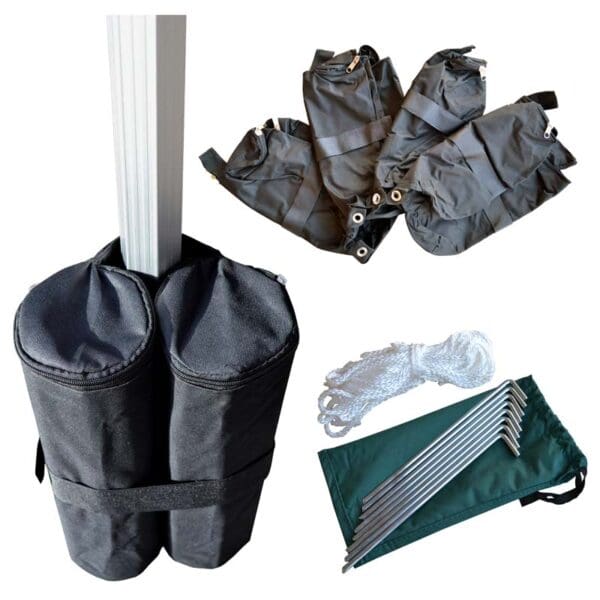

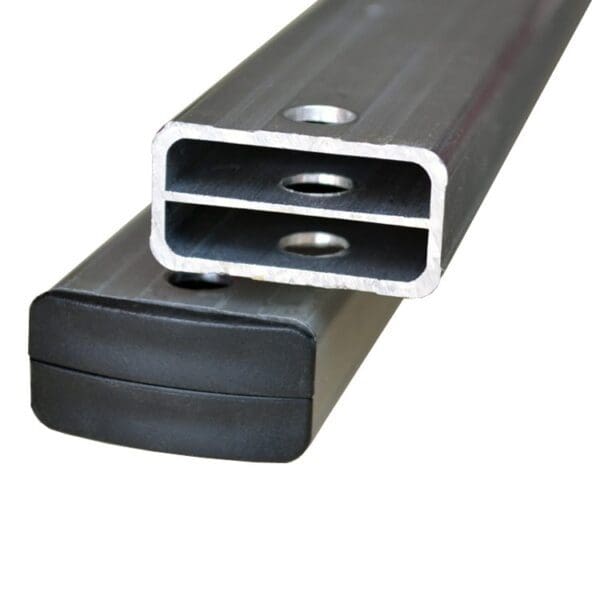

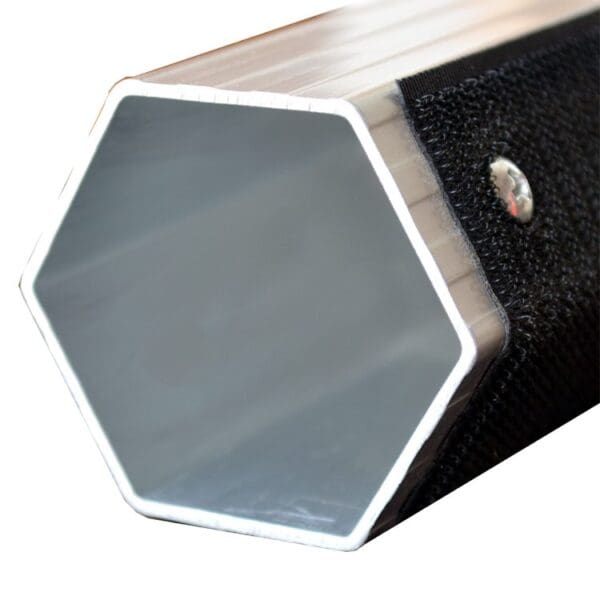

The PROTEX®50 8Mx4M Gazebo has a 58mm diameter hexagonal profile framework, made from high-quality aluminium, weighing a total of 139kg. The cross-bars, with internal ribbing are concertinaed and the footplates are made from galvanised steel, providing excellent stability to the structure. The gazebo is fully anchored through these feet. The frame has 5 different height settings, easily adjustable in 75mm increments – min. height to valance: 190cm, Max. height of valance: 220cm, Min. height to apex: 327cm, Max. height of apex: 357cm. The entire structure is held together with screws and locking nuts that securely and firmly connect the individual parts of the structure. The central vertical strut, with built-in internal spring, forms the centre of the structure and ensures ideal tension of the roof canopy. Supplied with heavy duty cover bag or optional heavy duty wheeled storage bag. Also supplied with tie-down kit (steel pegs & guy ropes) or optional heavy duty camlock straps & larger steel stakes.

Used Correctly with stakes and cam-lock straps our PROTEX®50 8m x 4m Gazebo have been tested to withstand wind gusts of up to 75km per hour!

CANOPY

The canopy is manufactured from 550g polyester PVC coated textile fabric, which is fully waterproof thanks to thermally taped seams. We also offer 520g PVC fabric. The weight of the canopy fabric is 22kg, with each square metre of the fabric weighing 550g. The material is reinforced, with double stitching at all corners and specific stress points. The external fabric is ribbed. There are anchor loops on all corners of the canopy for attaching guy ropes. We also have the capacity to print the gazebo’s canopy using either dye sublimation or vinyl heat transfer. We offer a large number of colours to choose from. The canopy is flame retardant to: BS 5438:1989, TEST 2B – BS 7837:1996. Colour fastness EN ISO 105 802-2002:5+.

To keep you and your customers dry in all weather conditions, discover our choice of gazebo guttering solutions.

SIDEWALLS

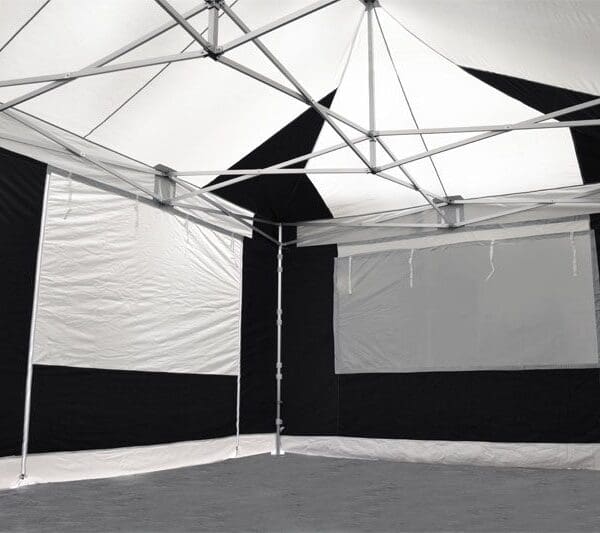

The sides are manufactured from fully waterproof POLYESTER with an inner PVC coating and a 600D Denier fibre density. The weight of the complete sidewall sets are 37kg. High quality zips are used to zip each panel together vertically. Again, the material is reinforced with double stitching at all corners and specific stress points. 50mm wide Velcro bands are used to fix the top of sidewalls to the canopy and individually to each frame leg. Each set of sidewalls consists of window panels with internal privacy blinds, double zipped doorways and solid panels. We also have the capacity to custom print the sidewalls using either dye sublimation or vinyl heat transfer. There is a large selection of colours to choose from. The sidewalls are flame retardant to BS 5438:1989 TEST 2B – BS 7838:1996. Colour fastness EN ISO 105 802-2002:5+.

Check out our gazebo sidewall and roof accessories to purchase spares and replacements.

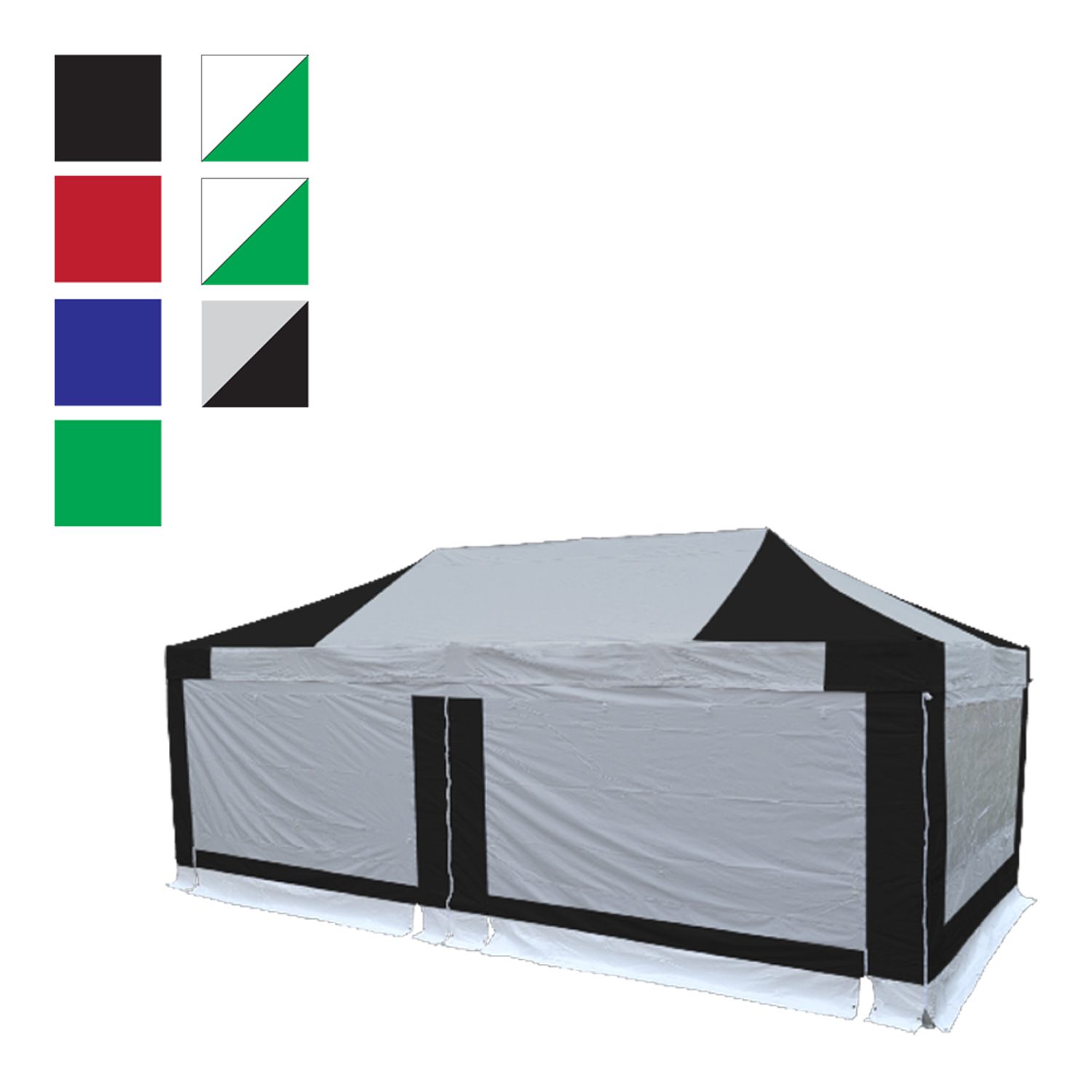

COLOUR VARIANTS

We offer a large number of colour options for the canopy and sidewalls.

Roof options (availability subject to gazebo size): Black, Navy Blue, Racing Green, White,

Sidewalls options (availability subject to gazebo size): No Sidewalls, Black, Navy Blue, Racing Green, White, Black and Silver.

We offer an additional printing service on the full PROTEX®50 GAZEBO range. Text, logos, specific pantone colours, complex graphic patterns, and even high-resolution photographs can be printed on the fabrics.

Depending on the complexity of the print, you can choose between:

• a cost effective option of thermal vinyl transfer (heat press)
• or by professional dye sublimation printing (digital printing into the structure of the fabric)

Complete information on printing options and prices

We also offer a free and non-binding graphic design service. Simply email us your logos/artwork and tell us as much information as possible about your requirements and we will arrange the rest!

ERECTING YOUR PROTEX®50 GAZEBO IS DESIGNED TO BE SIMPLE AND EASY

The construction of our PROTEX®50 GAZEBO has been refined over many years of experience so that the construction itself is an easy and quick job even for one person. Although pitching a gazebo is possible with one person, it is of course always easier with two people.

If the gazebo is not to be transported lying down, it is possible to leave the canopy permanently attached to the framework, which will significantly speed up the time required to erect.

CONSTRUCTION IN STEPS

• Hold the structure by the side scissor profiles on opposite sides (by two people ideally)
• Raise the structure approx. 5 cm – 10 cm from the ground and gradually unfold the gazebo by walking backwards
• Lock the sliding joints
• Extend the gazebo’s telescopic legs to the desired height
